Game Packaging System

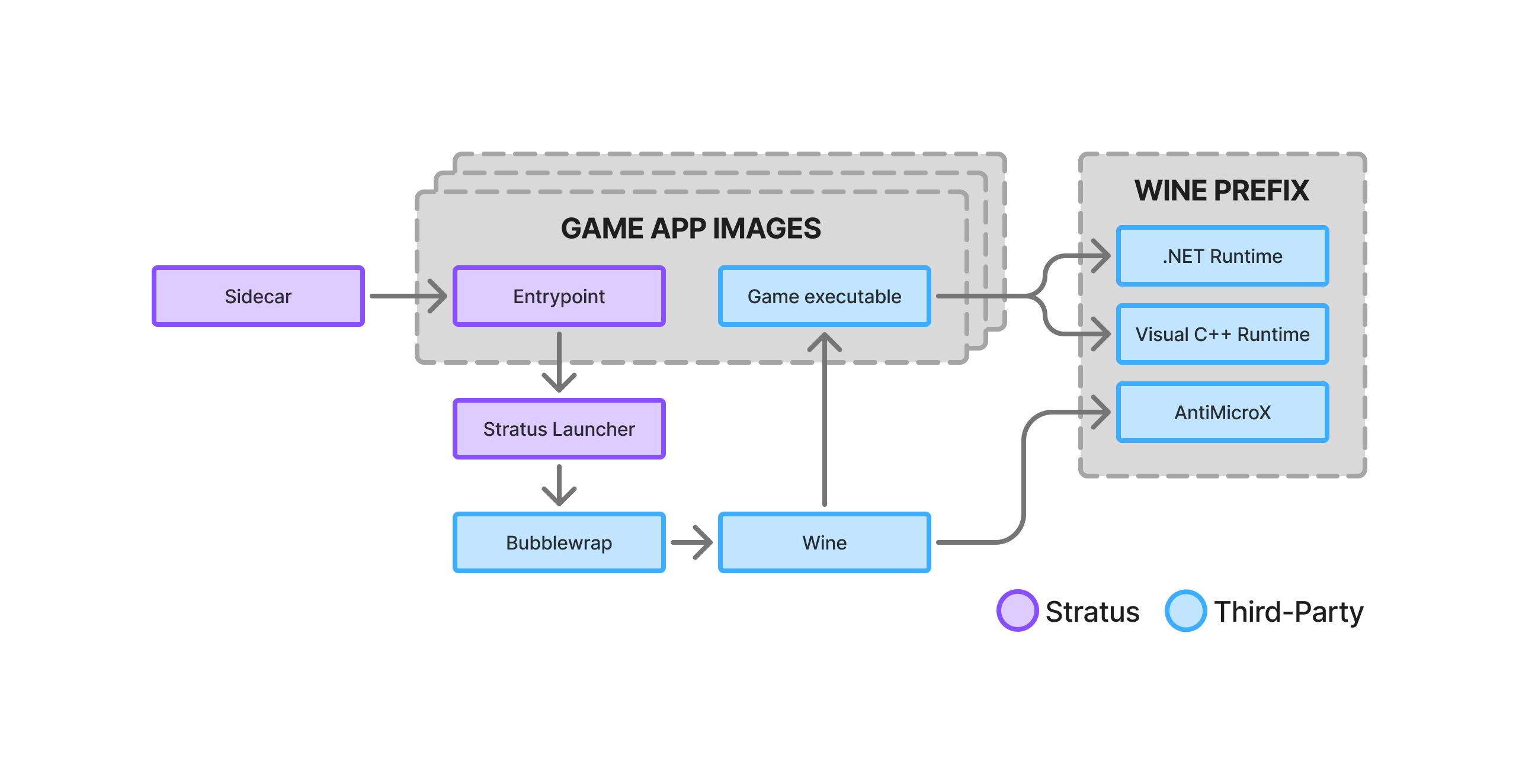

Each Stratus game is individually packaged in order to eliminate extra dependencies, ensure full compatibility with Stratus, and prevent persistent changes from being made on the streaming servers. The following diagram summaries the key components involved in this packaging system, each of which are described in detail below.

Dependencies

Stratus uses AppImages to package each game into a single file that can be easily downloaded or removed from streaming servers as needed. At its core, an AppImage is just an archive of a filesystem containing all of the files needed to run an app. When an AppImage is run, Linux mounts this filesystem in a temporary read-only directory and executes an AppRun entrypoint script. AppImages are easily created using the appimagetool tool, and Stratus uses per-game shell scripts to automate the process of collecting game assets, configuration files, and scripts and bundling them into AppImages.

Since programs running from inside an AppImage still have full access to the rest of the host system, Stratus takes a hybrid approach to dependency management. Game-specific dependencies are included inside of the game's AppImage, but dependencies that are shared across many games are installed directly to the streaming server to reduce AppImage file sizes. In particular, all Stratus AppImage depend on a shared script called the Stratus Launcher that performs common actions required by many games. For Windows-native games, which are run through Wine, the Stratus Launcher also ensures that standard dependencies such as .NET and Visual C++ runtimes are installed into the Wine prefix located at ~/.wine.

Compatibility

Some games support Stratus better than others by default, but most compatibility issues can be addressed during packaging. The AppImage entry script is commonly used to pass additional arguments to games to ensure that they open in fullscreen mode, default to using controller input, and obey the user's requested screen dimensions. Additionally, there are a few Stratus games, such as AssaultCube, that do not come with controller support. For these games, a program called AntiMicroX is used to map controller input to keyboard and mouse input. AntiMicroX is installed inside ~/.wine by the Stratus Launcher when the game environment is initialized. To enable it, games simply pass an argument to the Stratus Launcher with the desired mappings and it will ensure that AntiMicroX is started.

Non-Persistence

Finally, the Stratus Launcher is also responsible for ensuring that games don't make persistent changes to streaming nodes. Using Bubblewrap, an unprivileged sandboxing tool, Stratus creates a new namespace for each game and mounts the required system files as read-only. It also creates an Overlay Filesystem for the wine prefix, so that games can read from ~/.wine like normal but any changes they make are saved to a temporary filesystem that is discarded on exit. This ensures that games have limited access to the host system and will produce the same behavior on each run for each user. Additionally, to ensure that users can start playing immediately, games are also packaged along with any necessary configuration files that would usually be created interactively on the first run, such as user profiles, network settings, and display options.
