Video Streaming Pipeline

Overview

The video streaming pipeline in Stratus is responsible for delivering video frames from games to our client-side application running in the web browser. It's broken down into four components: capture, encoding, transport, and client-side rendering. On the streaming server, capture, encoding, and transport each run in their own dedicated thread, using ring buffers for inter-thread communication and synchronization.

At a high level, games send frame updates via the Wayland protocol, and they're parsed by the Wayland proxy (explained in detail in the Wayland Proxy blog post) to be packaged and enqueued into the capture/encode ring buffer. The encoding module is in charge of reducing the size of video packets so that they can be quickly streamed over the network. This thread spins in a loop, checking the ring buffer and encoding the freshest frames into H.264 formatted packets. Similarly, these packets are placed in the encode/transport ring buffer, and dequeued by the transport thread to be sent to the web client.

Encoding

We chose to implement the encoder thread using FFmpeg's avcodec library rather than using a subprocess that uses FFmpeg's CLI. This choice gives us direct programmatic control over the encoder's state. It also eliminates any overhead related to process spawning and interprocess communication with pipes, which is an important consideration in our latency-sensitive video pipeline.

Codec and Pixel Format Selection

We encode games using H.264 (via libx264). H.264 was a straightforward choice for a few reasons. It has universal support in various browsers via the WebCodecs API, which gives us some flexibility for client-side decoding. H.264 also minimizes encoding latency compared to alternatives like AV1, which instead offers better compression efficiency. Keeping encoding latency low is especially important for us, since the Stratus hardware does not support hardware encoding. As a result, encoding makes up a substantial portion of the end-to-end video latency.

Games typically send their frame updates in a raw RGBA format which is not compatible with H.264. The encoding thread converts new video frames to the YUV420P format using libswscale before encoding them. We chose YUV420P over YUV444P, sacrificing some color fidelity for a reduction in packet size. At 1080p, the perceptual difference in color is minimal, while the reduced packet size results in lower latency for the transport thread.

Parameter Tuning

The central tradeoff in our encoder configuration is encode time vs. quality vs. encoded packet size. Software encoding is relatively slow, so encode time was the most critical metric. That being said, decreasing encode time by creating less compressed packets resulted in the transport thread becoming the bottleneck. To manage this tension, we experimented with tuning libx264's presets, which balance encoding speed with compression ratio, and ultimately set it to ultrafast. We also enabled the zerolatency tuning setting for libx264, which similarly sacrifices compression efficiency for encoding speed.

To mitigate the effects of the increased packet size, we enabled differential frames for our encoder by setting the gop_size to 30. This means that a full frame (called a keyframe) is only sent once per 30 frames encoded, or every half second when targeting a 60fps application; the remaining frames only include information about data that has changed from the previous frame. Depending on the visual complexity of the game output, this can significantly decrease packet size. That being said, it introduces complexity in our handling of dropped frames; if a differential frame is dropped, the client cannot successfully recover until the next keyframe is received. Our strategy addressing this issue is explained in detail in the Ring Buffer section.

Stratus targets 1080p game output to ensure good image quality across various client display resolutions. To control the quality of encoded frames, we primarily focused on tuning libx264's constant rate factor (crf) parameter, which controls the size of compressed packets vs. their quality. For our games, we found a value of 23 provides nearly indistinguishable visual quality. One capability we didn't end up using is adaptive encoder tuning, where encoder parameters are dynamically adjusted based on client data. See our Future Work post for a more in-depth analysis of this strategy and its effects.

Ring Buffer Implementation

The streaming server uses two ring buffers to handle communication between each thread, as well as synchronization to ensure that data is not overwritten while it's being encoded or transmitted by the transport thread. Ring buffers are a type of circular buffer which keeps track of a head and tail index into the buffer; the head represents the index of the next entry that can be pushed into the buffer, whereas the tail represents the index of the last entry that was popped.

Capture to Encode

The capture/encode ring buffer is the more complex of the two. The encoder thread reads from it using a function called rbuf_wait_peak_latest, which doesn't simply pop the tail element of the ring buffer; instead, it discards all but the most recent entry, and returns that item without popping it. If the buffer is empty, the encoder thread blocks until a frame arrives. The result is that the encoder always works on the freshest available frame, and stale frames captured while the encoder was busy are dropped.

It's important to peek at the frame rather than popping it so that the capture thread doesn't overwrite a slot that the encoder is actively reading. When the frame is finally popped, the ring buffer's tail is incremented, allowing that index to be filled in with the next frame by the capture thread.

We also implement a backpressure mechanism so that the transport thread does not become overwhelmed by encoded frames. Before encoding, the encoder thread checks whether the encode/transport queue has space. If it doesn't, the frame is skipped entirely. This is necessary because the transport layer must attempt to deliver every encoded frame. Dropping a differential frame mid-stream would leave the decoder in an inconsistent state until the next keyframe. It's safe to simply drop the frame before encoding, where the cost is just losing a stale frame, than to drop one after encoding, which could result in visual corruption or jitter on the client.

Cleanup of captured frames is handled through a configurable free handler attached to the ring buffer at initialization. When an item is popped, the ring buffer just moves the tail pointer forward by one, with no cleanup. Then, when the capture thread attempts to write into that slot again, it calls the free handler on the existing contents before overwriting them. This was necessary since there is Wayland-specific logic to be handled during cleanup that the capture thread must be responsible for (releasing and destroying surfaces or buffers), since it's the thread that has an open Wayland connection. It also defers cleanup work from the encoder thread, which remains the bottleneck for the pipeline, to the less-burdened capture thread.

Encode to Transport

The encode/transport ring buffer is simpler. Because differential frames must be delivered in order to avoid decoder corruption, the transport thread attempts to send every frame present in the buffer rather than skipping ahead to the latest. If a send fails, the error is logged for diagnosis, but the pipeline continues. The transport layer already handles reliability at the QUIC level, so a failure during transport points to some issue within the Quiche configuration, rather than a network connectivity issue.

Render

Transport

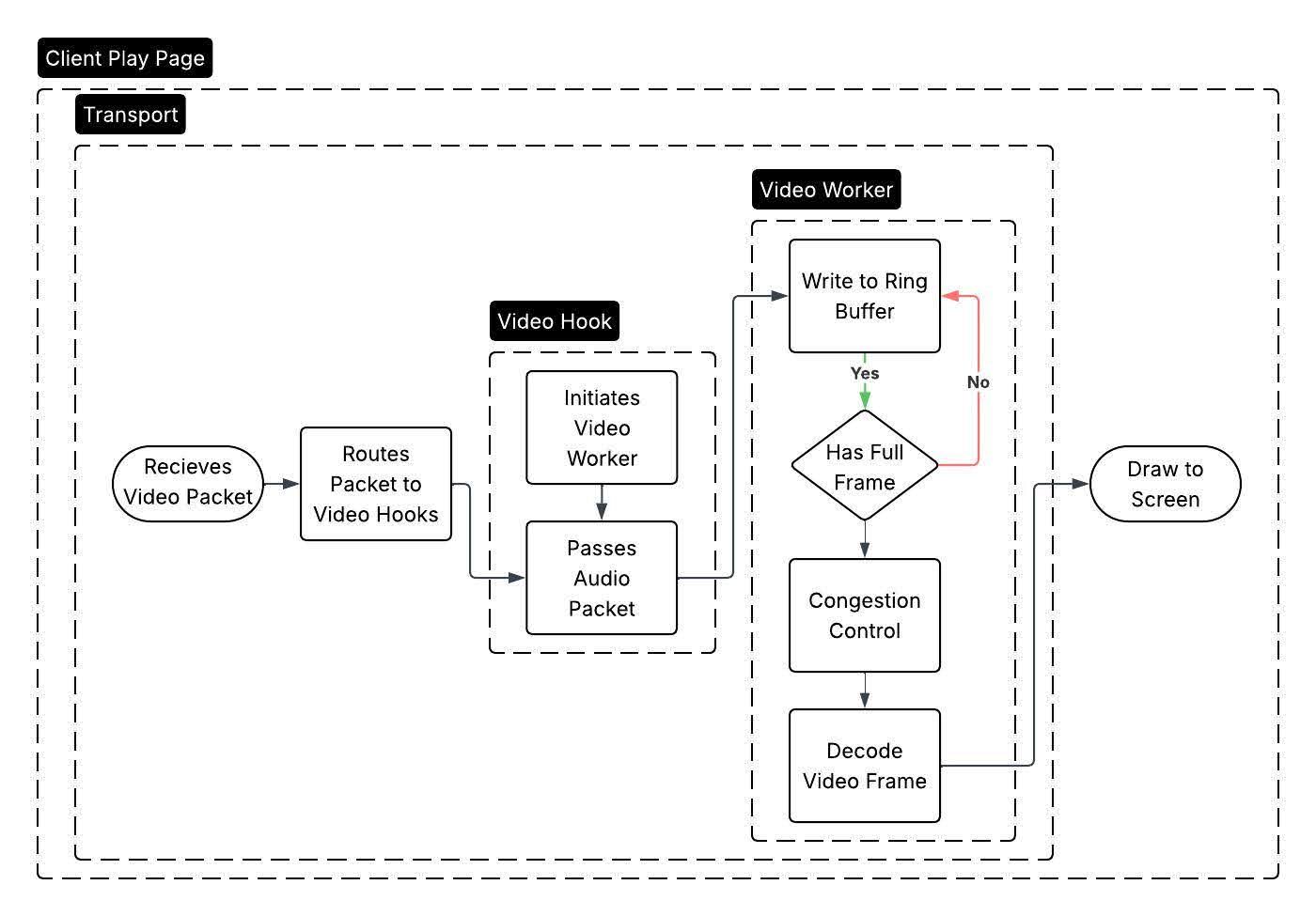

The client render pipeline starts in the transport layer. This is where the browser receives incoming video packets from the Stratus streaming server over WebTransport. Transport is primarily responsible for reading the stream and routing packets based on the stream's type. When it determines that a packet belongs to the video stream, it forwards the data to the video hook rather than attempting to decode or render it directly.

Video Hook

The video hook connects the transport layer to the actual rendering system. It owns the canvas on the client play page, creates the video worker, and transfers the canvas to that worker using OffscreenCanvas. After the worker is initialized, the hook forwards incoming video packets to it. So its role is basically to set up the rendering environment and pass the video data to the background thread.

Video Worker

The video worker does most of the heavy lifting. First, it writes incoming packet data into a ring buffer, because network chunks do not always arrive as complete video frames. The worker checks whether the buffer contains a full frame yet. If it does not, it keeps buffering more data.

Once a full frame is available, the worker runs congestion control. If the client is falling behind, it drops stale delta frames until the next keyframe, so playback stays close to real time. Then the worker decodes the frame using WebCodecs and finally draws it to the on-screen canvas.
