Overall Architecture

This post documents the architecture of Stratus, an open-source game streaming service created by a team of Oregon State University students for their senior capstone project. Stratus is unique among cloud gaming solutions for its use of Linux-based streaming servers, the WebTransport protocol for streaming to web browsers, and a custom Wayland proxy for capturing game video. This architecture has enabled it to keep startup times under 2 seconds and achieve round-trip "click-to-photon" latencies of as little as 40ms while streaming 60fps game video at 1080p (see our analysis of Stratus' performance for more details).

Overview

Stratus is composed of three core components: a frontend web client, a cluster of streaming servers, and a coordination server. The client enables users to browse the Stratus game library, select a game to play, and then connect to a game session on a streaming server. The streaming servers run the games, stream game content to the clients, and inject client input into the games. Finally, the coordination server pairs clients with streaming servers, and also provides clients with APIs for authentication and game library queries.

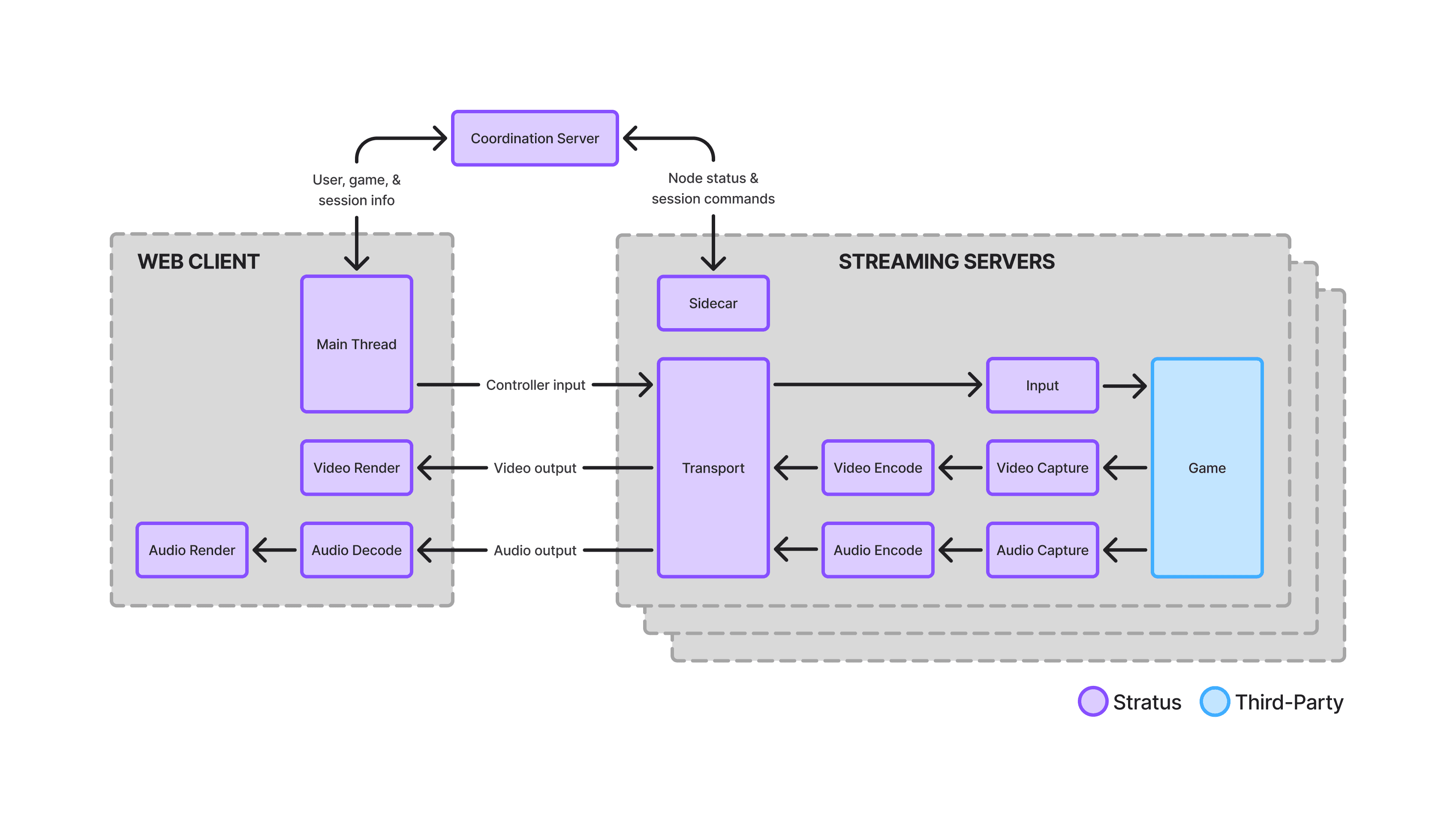

The streaming server is further subdivided into seven modules (shown below). The Sidecar module is the first to start, and is responsible for taking commands from the coordination server, initializing/terminating the other modules when a stream session is started/stopped, and launching the game. (Each streaming node currently only supports one simultaneous stream session for simplicity). Communication with the web client is handled by the Transport module. The remaining streaming server modules handle the processing of game video, audio, and controller input. Similarly, the web client also uses separate threads for rendering game audio and video.

Tech Stack & Hosting

The web client is a Next.js app built with TypeScript and Tailwind CSS. It depends on Google OAuth for authentication and an S3 bucket for game asset storage. The coordination server is also written in TypeScript, and uses express.js to provide a REST API for the frontend clients and a WebSockets APIs for the streaming servers. User and game records are persisted in a DynamoDB instance. Lastly, the streaming server is a multithreaded C / C++ app built with CMake that utilizes Google's QUICHE library for communicating with frontend clients over WebTransport.

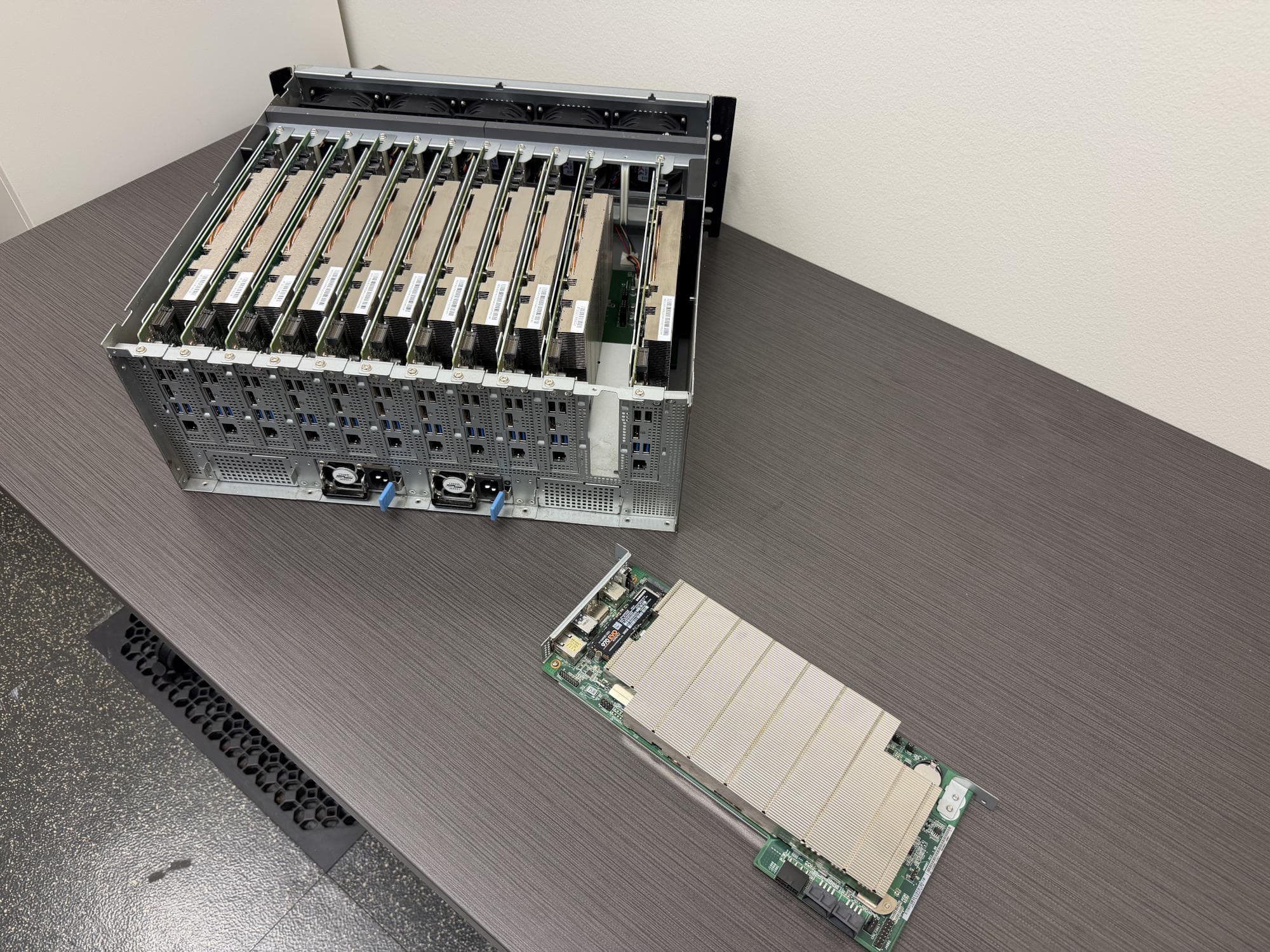

While the frontend and coordination server are both deployed in the cloud (on Vercel and an AWS EC2 instance, respectively), the streaming servers run on a cluster of 12 BC-250 nodes (pictured below) that are hosted on-prem. The cluster was originally created for mining cryptocurrency, but it is an excellent fit for game streaming as well. Each node contains a PlayStation 5 APU with 6 Zen 2 CPU cores, an RDNA 2 GPU with 25 Compute Units, and 16 GB of GDDR6 memory. A custom Arch Linux installation script (described in detail in our "Stratus OS" post) is used to provision the nodes with all necessary Stratus software, games, and dependencies.

Stream Session Lifecycle

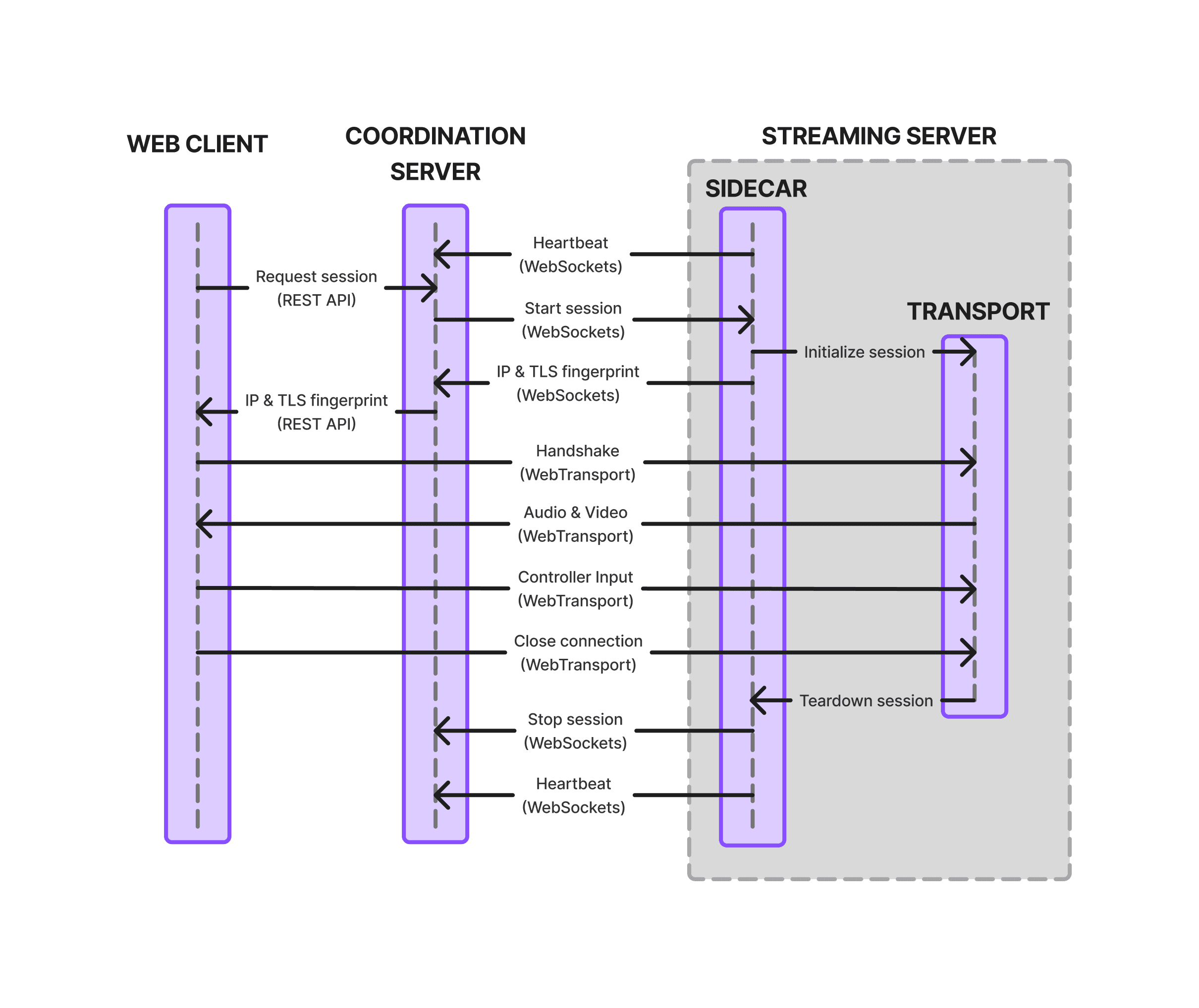

As previously mentioned, the coordination server is responsible for managing stream sessions by pairing clients with streaming servers. It monitors the state of the streaming cluster by listening for the heartbeat messages sent periodically by each streaming node, which contain the current system load, software version, and installed games. When a user requests to start a stream session, the coordination server chooses an available streaming node that has the game installed and sends it a command to start the session.

When this command is received by the Sidecar on the streaming server, it starts new instances of the other modules in new threads and then launches the game in a separate process. Since the streaming server runs on Linux, Wine is used to run games that are native to Windows. Additionally, each game is packaged as a single AppImage file and utilizes Linux's Overlay Filesystem to run in a non-persistent sandbox. Our post on game packaging further explains how games are packaged and executed.

Once the modules and game have been successfully started, the Sidecar responds to the coordination server with its IP address and a TLS fingerprint that is tied to the session. These credentials are then forwarded to the client, who establishes a direct WebTransport connection to the streaming server and begins streaming game I/O. When the user closes the stream, the streaming server sends a message to the coordination server to stop the session, and the coordination server marks the node as available again.

Streaming Pipelines

Stratus implements three separate pipelines to provide full game streaming functionality: video output, audio output, and controller input. Data for all three pipelines is transported directly between the client and streaming server using WebTransport, a new protocol built on top of HTTP/3 that includes support for multiple concurrent bidirectional streams. Stratus uses Google's QUICHE library to implement the server side of this connection, and on the client side, support for WebTransport is included in all modern web browsers. Read our Transport post for more information about our use of WebTransport and QUICHE.

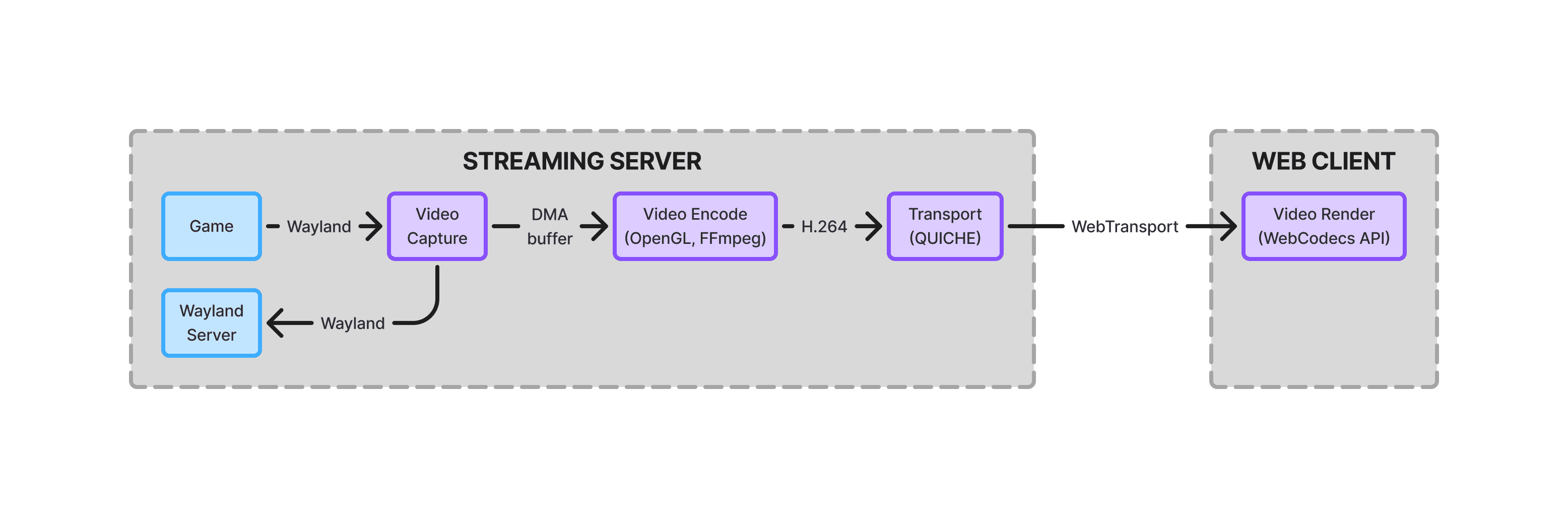

The video pipeline begins as frames are captured from the game on the streaming node by the Video Capture module. Since Stratus games run on Linux, they send frame data to the system's display server using the Wayland protocol. These frames are intercepted by the Video Capture module using a custom Wayland proxy in order to minimize video capture latency (see our Video Capture post for a deep dive on this system). The captured frames typically take the form of metadata for a direct memory access buffer, so after they are passed to the Video Encode module, they are read into a standard pixel buffer using OpenGL before being encoded into H.264 using FFmpeg. Finally, the encoded frames are passed to the Transport module to be sent to the client, where they are rendered to the user's screen using the WebCodecs API. We analyze our video pipeline in more detail in our Video Streaming post.

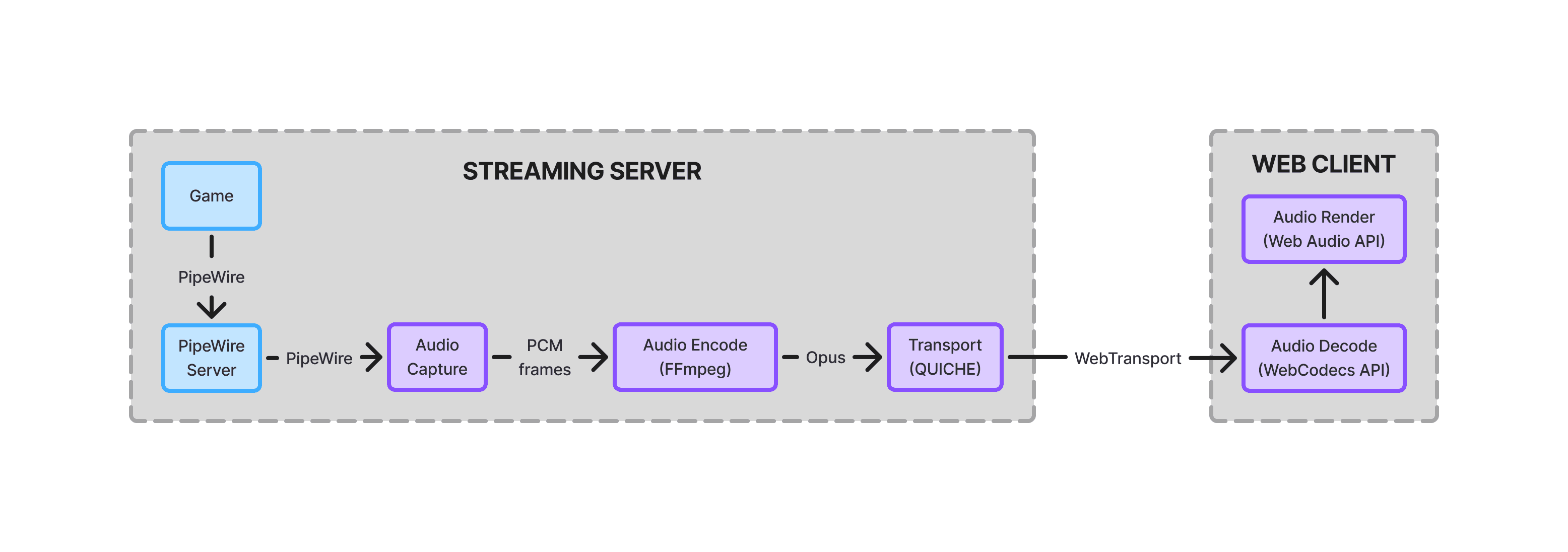

The audio pipeline works very similarly. The Audio Capture module pulls game audio from the system PipeWire server, and the Audio Encode module encodes the audio into the opus codec using FFmpeg. The encoded audio frames are then sent to the client by the Transport module in a separate stream within the same WebTransport connection. Finally, the frontend decodes the audio frames using the WebCodecs API and plays the audio in the user's browser using the Web Audio API. Our Audio Streaming post discusses the lower-level implementation details of this pipeline.

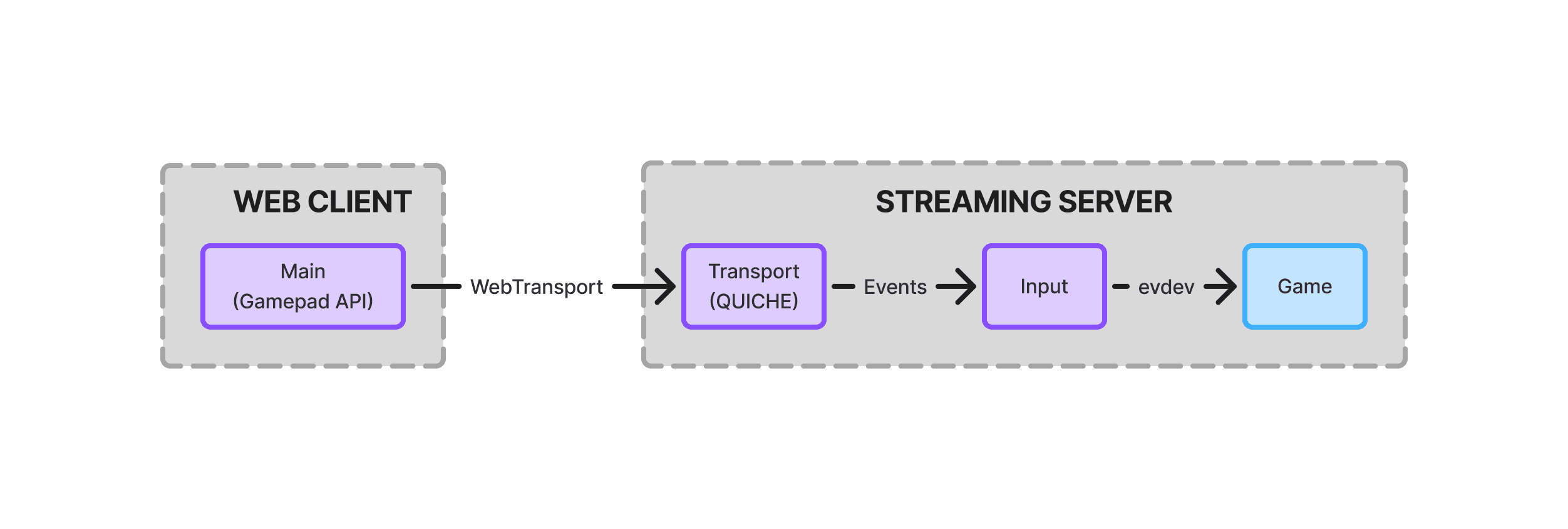

The final streaming pipeline is for controller input. It's worth noting that Stratus only supports controller input and not keyboard/mouse input. Although both could be implemented using a similar architecture, we prioritized controller support because we determined that it would be simpler and quicker to implement. Controller input events are captured on the client using the Gamepad API and then sent to the streaming server over a dedicated WebTransport stream. The Transport module passes each event to the Input module, which injects them into the game via a virtual gamepad device that is created and operated using the kernel's evdev interface.

Conclusion

Stratus' architecture has proven to be efficient yet reliable. There are many improvements that could be made if we had more time, but we are proud to have created such a performant game streaming service in the short nine months of our senior capstone. If you're interested in learning more about Stratus, we encourage you to read our other blog posts, which go into more detail on different aspects of Stratus, and to check out the Stratus source code on GitHub.
